Precor UBK 865 Upright Bike(Precor Ubk 865 Upright Bike)

Climb aboard and start pedaling on the Precor UBK 800 Line upright bike, the exact same bike you’ve experienced in fitness centers and five-star resorts around the world. With its finely tuned ergonomics, durability, and a 750-watt two-stage drive system, you’ll enjoy an elite professional-class workout right in the comfort of your own home.

Innovation for Superior Riding Comfort

Over-molded handle bars add comfort and durability while offering heart rate contacts and three ergonomic riding positions: upright, cruising and road. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike.

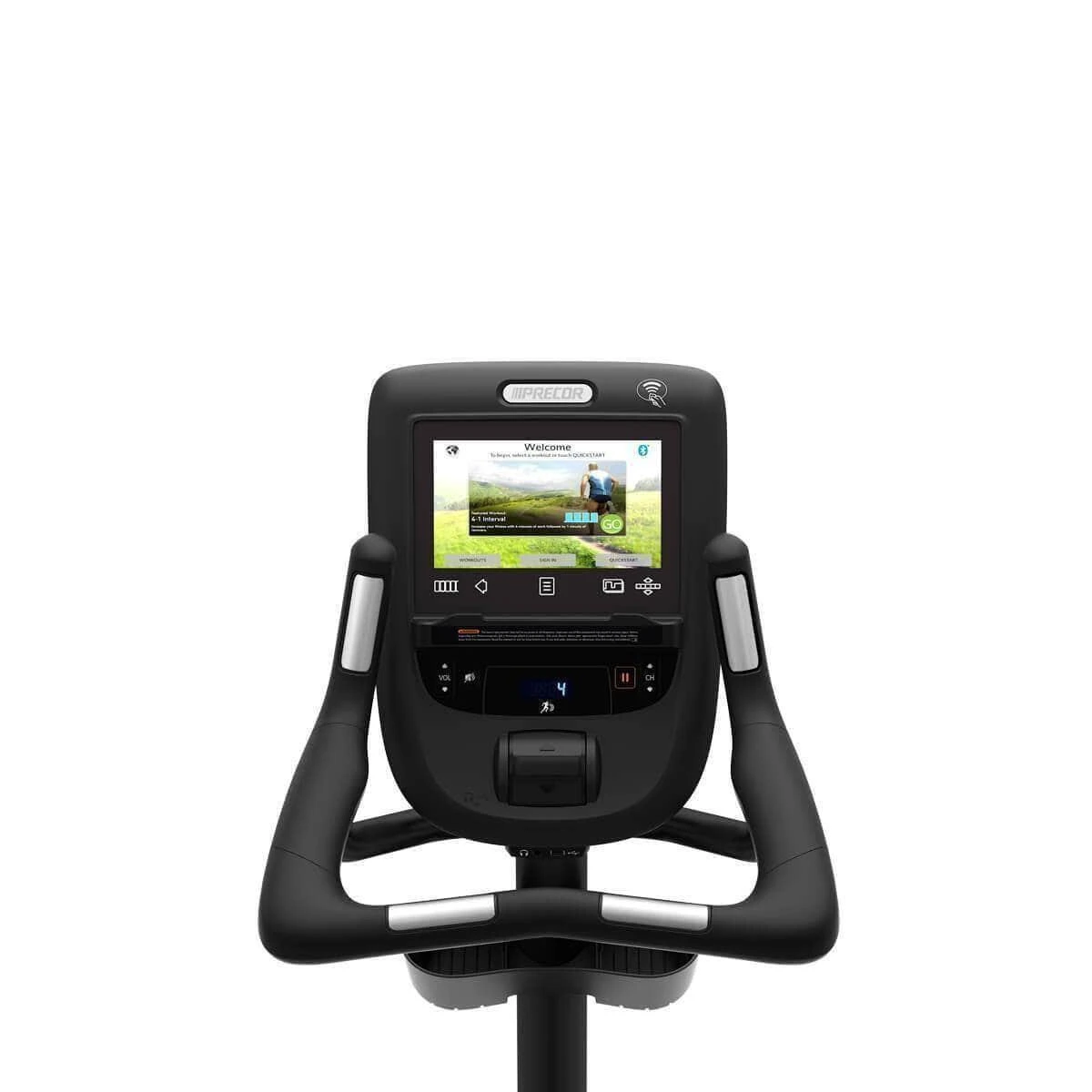

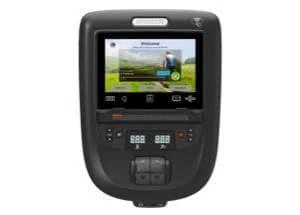

P62 Touchscreen Console

The P62 console provides a personalized viewing experience, remarkable TV clarity, and internet options that exercisers crave, all in a 10″ screen. With the ability to “favorite” selections for the future, exercisers can customize their workout experience based on what is important to them.

Equipment Features

Cable Management	Optional
Covers	Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Accessories Holder(s)	Dual accessories holder for water bottle, portable music, keys, etc.
Transport Wheels	Integrated
Universal Seat Mount	Yes
Frame	Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
Bearings	The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life.
Seat	Improved, ergonomic saddle design with comfort groove is injection-molded polyurethan with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort. Optional universal seat post allows easy installation of different saddle types.
Seat Adjustment	New, convenient seat adjustment allows the user to easily change the seat to their desired height, either on or off the bike.
Handlebars	A new over-molded handlebar design offers the user three comfortable riding positions-upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The wide width of the handlebars provide stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the user in better ergonomic position with the forearms more directly under the shoulders. In the cruising position, the wide handlebar is more comfortable on the user’s hands. Touch heart rate is integrated in the upright and road-race positions
Pedals	For double the convenience, dual-sided pedals allow the rider to use the pedals with or without the integrated pedal strap. The extra wide pedal comfortably accommodates feet of all sizes, which allows proper pedaling form with the foot directly over the user’s knee.
Biomechanics	To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank is key to aide in efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5 inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.

Resistance System

Minimum Watts	18 (level 1 at 20 RPM)
Maximum Watts	750 (level 25 at 150 RPM)
Two-Stage Drive System	The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and consistent resistance progression.
Resistance Levels	25
3-Piece Crank	3-piece premium crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
3-Phase Generator	3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt Drive	Belt drive for smoother, quieter operation and reduced maintenance.

Console Features

Display Type	10.1 in / 25.7 cm LCD Capacitive Touch Screen
Numeric Keypad	Yes
Motion Controls	Yes, in software
Tactile Dome Keys	Vol up/down, mute, Channel up/down, pause workout
QuickStart™	Yes
Console Language(s)	English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish
Units Selection	Metric and U.S. Standard
Maximum Workout Time	120 minutes (adjustable)
Preset Programs	Lose Weight 4-3 Interval Aerobic Fat Burner Heart Rate Zone Be Fit Manual 1-1 Interval 2-1 Interval 4-1 Interval Rolling Hills Mountain Peaks Hill Climb Heart Rate Zone Push Performance 1-4 Interval 1-2 Interval 5 K Heart Rate Zone Watts Target
Electronic Readouts	Resistance Level Total Distance, Distance Remaining Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Time in Zone, Segment Time RPM, Speed, Average Speed Heart Rate, Average Heart Rate, Max Heart Rate
Pause Range	1 to 300 seconds
Default Pause Setting	30 seconds

Heart Rate Monitoring

Touch	Yes
Telemetry	Integrated telemetry heart rate reads heart rate from a user’s HR chest strap.
Heart Rate Sensor Advisory	The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.

Integrated Entertainment Options

Closed Captioning	Yes, CC1-4, Text 1-4 (North America only)
Video decoding	MPEG-2, MPEG-4, H.264
Global TV Support	Integrated tuner – NTSC, ATSC, PAL, SECAM, DVB-T/T2/C
Mobile Device Charger	Integrated
Reading Rack	Integrated
Video inputs	RF, HDMI (media adapter only – future)

Network Capabilities

RFID / NFC	ISO/ISEC 14443A MIFARE, NFC P2P and R/W modes (future)
Ethernet	10/100/1000 Base-T
Diagnostics	Ability to set club parameters, e.g. limit exercise time, set default language and pause time.
CSAFE Ready	N/A
FitLinxx Compatible	N/A
Wifi	802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation
Bluetooth	Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future)

Equipment Specifications

User Height Range	58 to 78 inches / 147 to 198 cm
Maximum User Weight	350 lbs / 159 kg
Crank Width	19 / 7.5
Standard Frame Colors	Black Pearl

Shipping Dimensions and Weight

Length	51.5 inches / 131 cm
Width	28 inches / 71 cm
Height	54 inches / 137 cm
Shipping Weight	178 lbs / 81 kg

Equipment Dimensions and Weight

Height with PVS	N/A
Length	48 inches / 122 cm
Width	21 inches / 53 cm
Height	62 inches / 157 cm
Machine Weight (base equipment)	169 lbs / 77 kg

Power Requirements

Equipment	Powered
Personal Viewing Screen (PVS)	Powered

Regulatory

cTUVus	Yes
IEC CB	Yes
FCC	Yes
ETL	Yes
CE	Yes
EN957	Yes
ASTM	Yes
