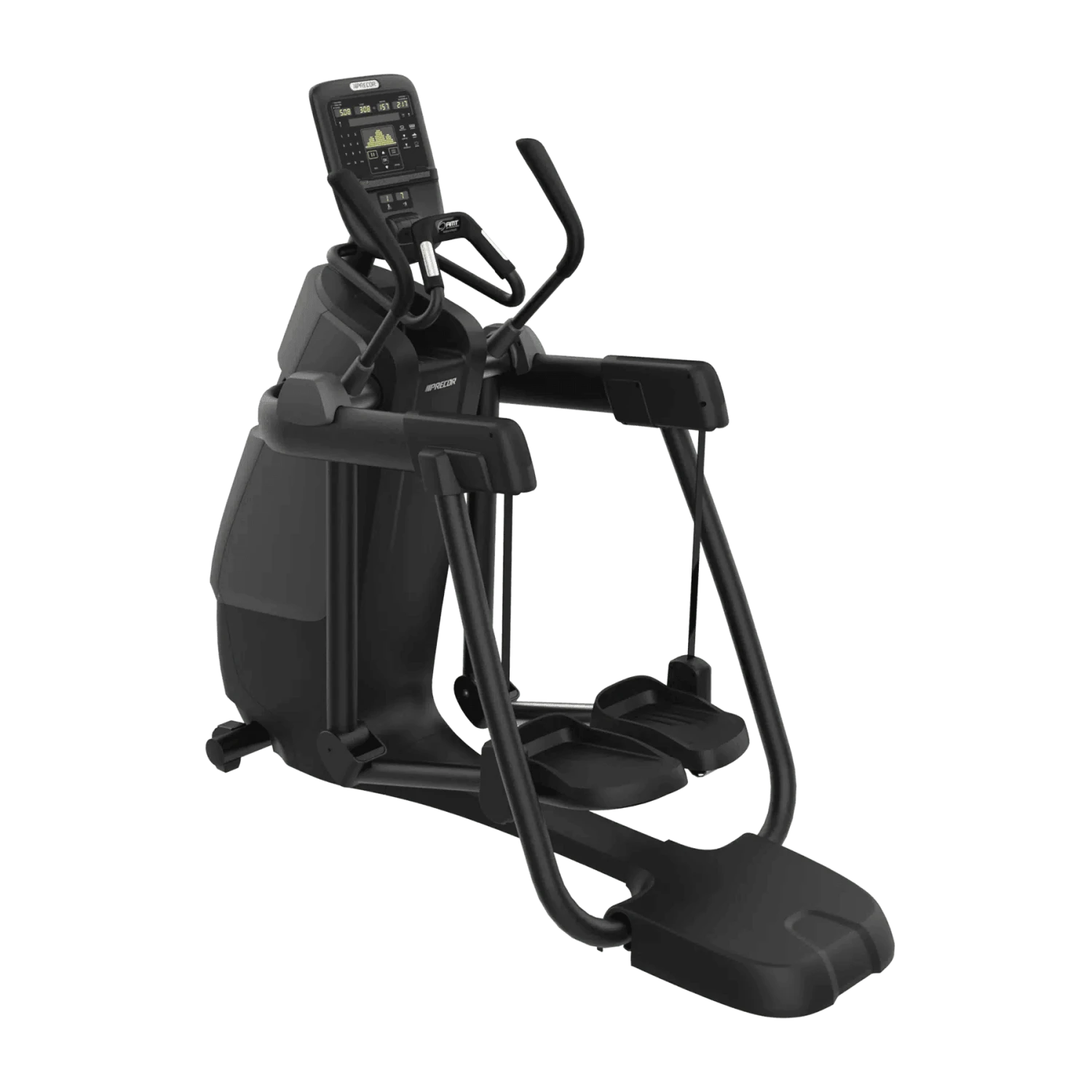

Precor AMT 835 Adaptive Motion Trainer(Precor Amt 835 Adaptive Motion Trainer)

The innovative and premium design of the Precor Adaptive Motion Trainer AMT 835 takes fitness to a whole new level with the addition of the Open Stride feature. This single piece of equipment fully engages exercisers of all fitness levels with an infinite range of stride paths to create a uniquely effective low-impact workout, making every workout a personalized experience. The AMT 835 provides exercisers boundless cardio variety without the need to change machines.

Bring home the exact same AMT used in fitness clubs worldwide. The Experience Series Adaptive Motion Trainer (AMT) 800 Line features both an adaptive stride length and an adjustable stride height (Open Stride™). Open Stride allows you to adjust the stride height from 6.8 to 10 inches (17-25 cm) and change your stride length at will from 0-36 inches (0-91 cm), to virtually fit everyone regardless of size. With a combination of climbing, walking, and running movements, moving hand bars and dual action movements between your legs and arms, the AMT will allow you to focus on different muscle groups for a total body, low-impact workout, day in and day out. The AMT 800 Line with Open Stride provides you with an infinite range of stride paths to create a uniquely effective and personalized experience every time – all in one piece of fitness equipment. The AMT 800 Line features three models AMT 835, 865, and AMT 885. The difference between each model is the console (P31, P62, or P82) and is available in a Black Pearl frame.

Adaptive Motion with Open Stride™

Open Stride™ is a unique feature that allows exercisers to adjust their stride height from 6.8 to 10 inches (17 to 25 cm) and change stride length at will from zero to 36 inches (0 to 91 cm), providing an infinite range of stride paths to engage several muscle groups.

A Versatile Cardio Workout

With a combination of climbing, walking and running movements, moving handle bars and dual action movements between the arms and legs, the AMT® 835 allows users to focus on different muscle groups for a total body workout.

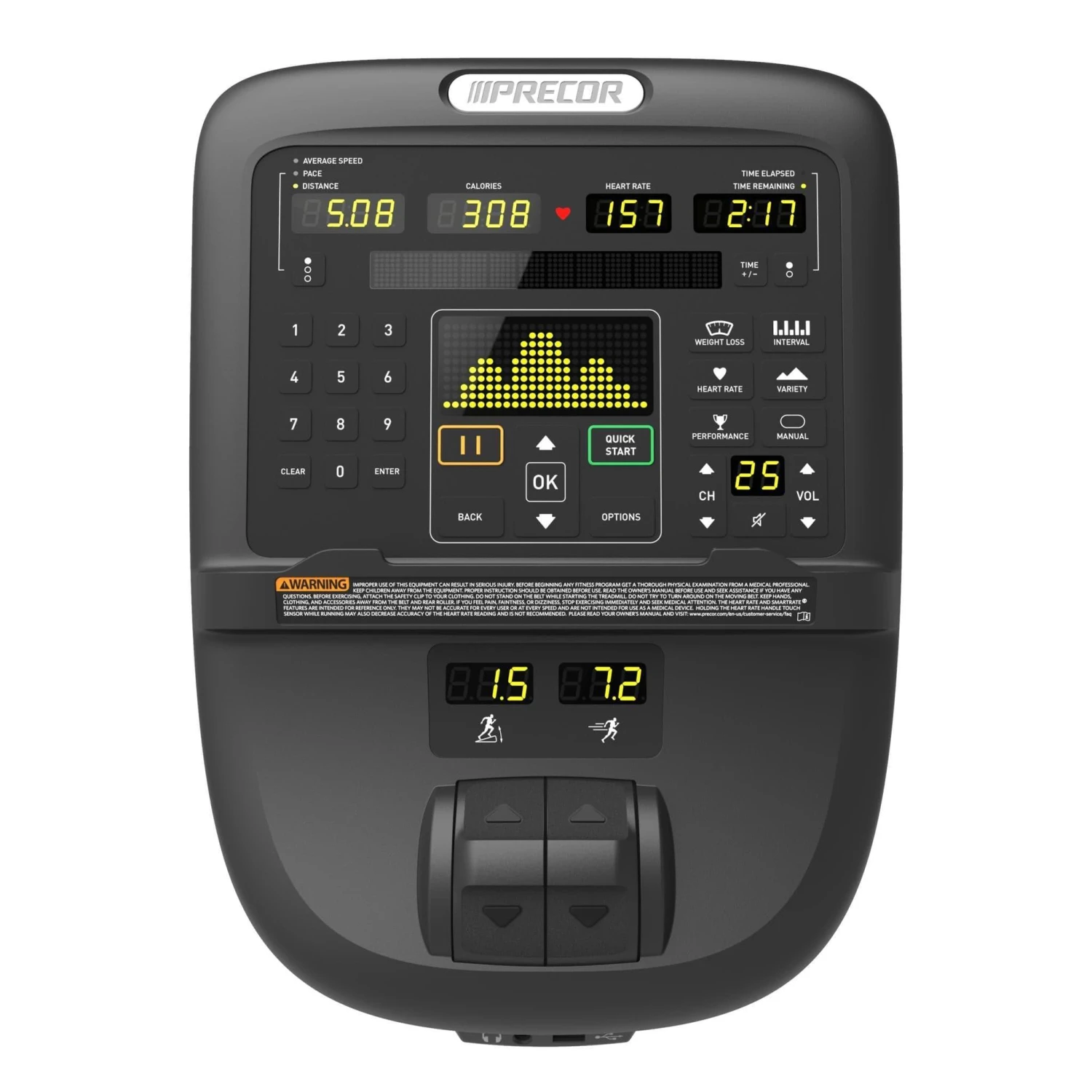

P31 Console

Finally, an LED console that works harder for you, your servicers, and your exercisers. Get integrated asset management to supercharge your service techs with extra information, right at their fingertips. Exercisers will enjoy the well-placed channel and volume change controls.

Equipment Features

Adaptive Stride Length	Naturally adapt stride length without the need to control settings. From zero to 36 inches (0 to 91 cm), to match the desired workout for each unique user.
Open Stride™	Open Stride™ is a unique feature that allows exercisers to adapt their stride height from 6.8 to 10 inches (17 to 25 cm) and stride length from zero to 36 inches (0 to 91 cm).
Dual Action	Dual action provides both upper and lower body workout. Arms are engaged with pushing and pulling motion to provide the ultimate in total body engagement.
Stride Dial™	The pendulum-like swing of the Stride Dial™ helps users see stride length to determine the muscle groups being worked. As stride length changes, the Stride Dial updates real-time.
Biomechanics	Biomechanics validated by Western Washington University Biomechanics Lab for users of all fitness levels and sizes, from the 5% size female to the 95% size male user. Excellent stability and freedom of movement.
Foot Pedals	Foot pedals with toe caps enable user to optimize muscle involvement. Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
Step-on Platform	Step on platform in the rear is polypropylene for durability. Platform enables the user to step onto the foot pedals while identifying how far the foot pedals may extend from the back of the machine.
Bearings and Pivot Points	The smooth feel is optimized by using large bearings and oversized pivot shafts.
Water Bottle and Accessories Holder	Accessories holders for water bottle, reading communication devices and portable music player.
Covers	Side panels are easy to remove for servicing.
Transport Wheels	Integrated
Cable Management	Optional

Resistance System

Resistance System	Twenty resistance levels ranging from 20 watts (level 1 at 60 SPM, zero stride length) to 375 watts (level 20 at 120 SPM, max stride length).
Resistance Levels	1 – 20
Minimum Watts	20 watts
Maximum Watts	375 watts

Console Features

Console Type	Large LED Display
Tap Control	No
Tactile Dome Keys	Yes
QuickStart™	Yes
Motion Controls	Yes
Numeric Keypad	Yes
Units Selection	Metric and U.S. Standard
Preset Programs	Manual Interval Variety Performance Heart Rate Weight Loss
Console Language(s)	Dutch, English, French, German, Italian, Portuguese, Russian, Spanish
Maximum Pause Time (Pause)	30 seconds
Electronic Readouts	Resistance Level Distance Strides / Min Calories / Min Calories Heart Rate Time Remaining Time Elapsed Time in Zone Segment Time Remaining Average Speed (strides per min) Calories / min Calories / hour Watts METS Target HR Average HR Stride Length % Complete Workout Summary Workout Profile
Maximum Workout Time	unlimited

Heart Rate Monitoring

Touch	Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease of use by exercisers of all sizes.
Telemetry	Yes. Equipped for heart rate telemetry reading using a chest strap.
SmartRate®	No

Integrated Entertainment Options

Reading Rack	Integrated
Personal Viewing Screen (PVS) (Specification)	15in. Screen
Entertainment Cap / Wireless Receiver	Optional

Network Capabilities

CSAFE Ready	Yes
FitLinxx Compatible	Yes
Diagnostics	Ability to set club parameters, e.g. to limit exercise time and pause time.

Equipment Specifications

Maximum User Weight (lbs / kg)	350 lbs / 159 kg
Step-up Height (footplate at lowest position)	6.5 inches / 16.5 cm
Foot Pedal Dimensions (inches / cm)	8 W x 14 L inches / 20 W x 36 L cm
Minimum Space Between Foot Pedals (inches / cm)	4 inches / 10 cm

Equipment Dimensions and Weight

Length	80 inches / 203 cm
Width	35 inches / 89 cm
Height	69 inches / 175 cm
Height with PVS	81.8 inches / 208 cm
Equipment Weight	412 lbs / 187 kg
Machine Weight (base equipment)	412 lbs / 187 kg

Shipping Dimensions and Weight

Length	70 inches / 178 cm
Width	32 inches / 81 cm
Height	67 inches / 170 cm
Shipping Weight	495 lbs / 225 kg

Power Requirements

Equipment	Self-Powered
Personal Viewing Screen (PVS)	Powered
Optional Power Supply	Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends.
U.S. & Canada 120 VAC	120V/15A circuit with 5-15R NEMA receptacle
U.S. & Canada 240 VAC	N/A
International 240 VAC	Applicable country-specific power cord

Regulatory

FCC	FCC
ETL	ETL
CE	CE
EN957 / ASTM	EN957 / ASTM
